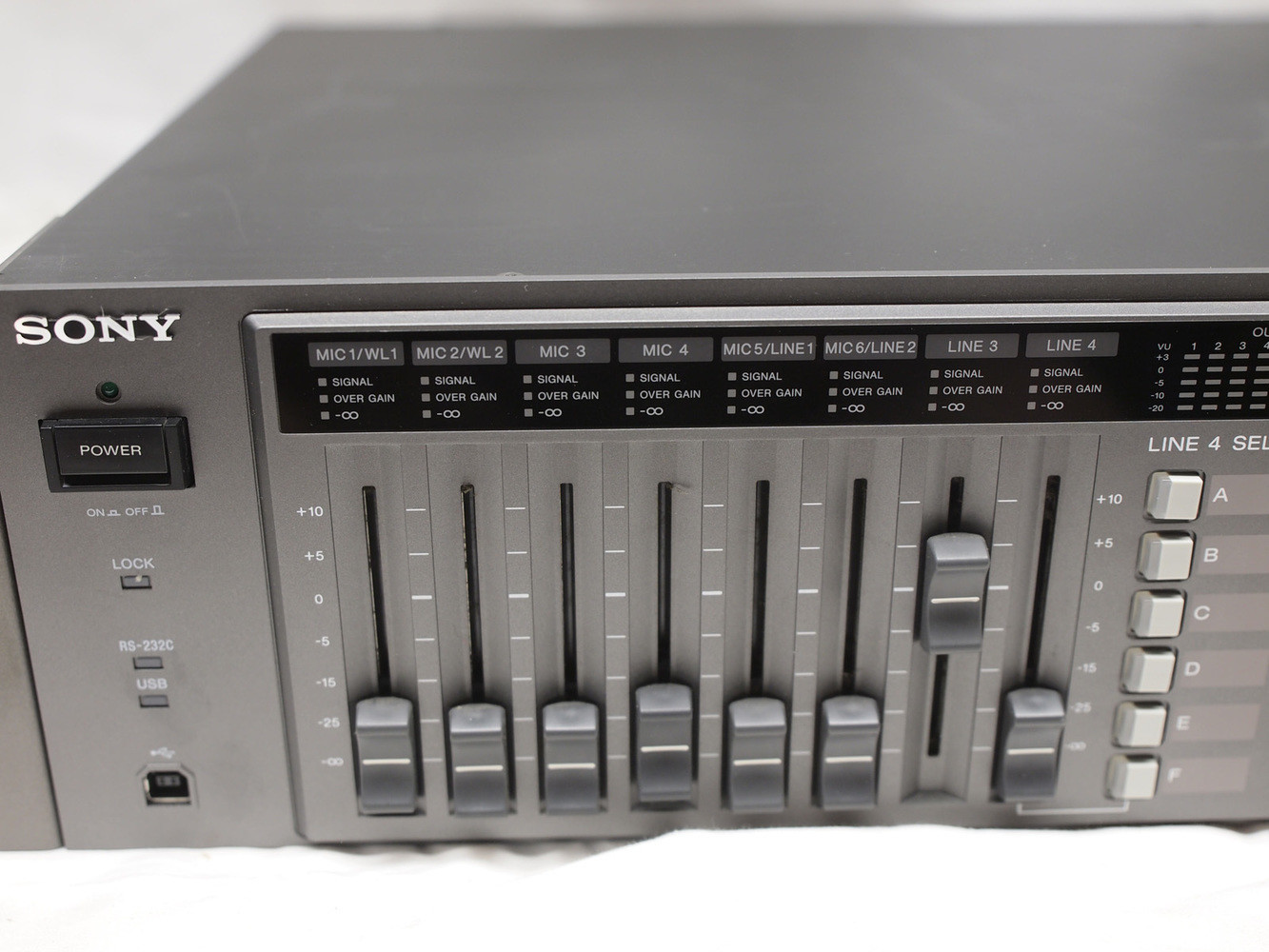

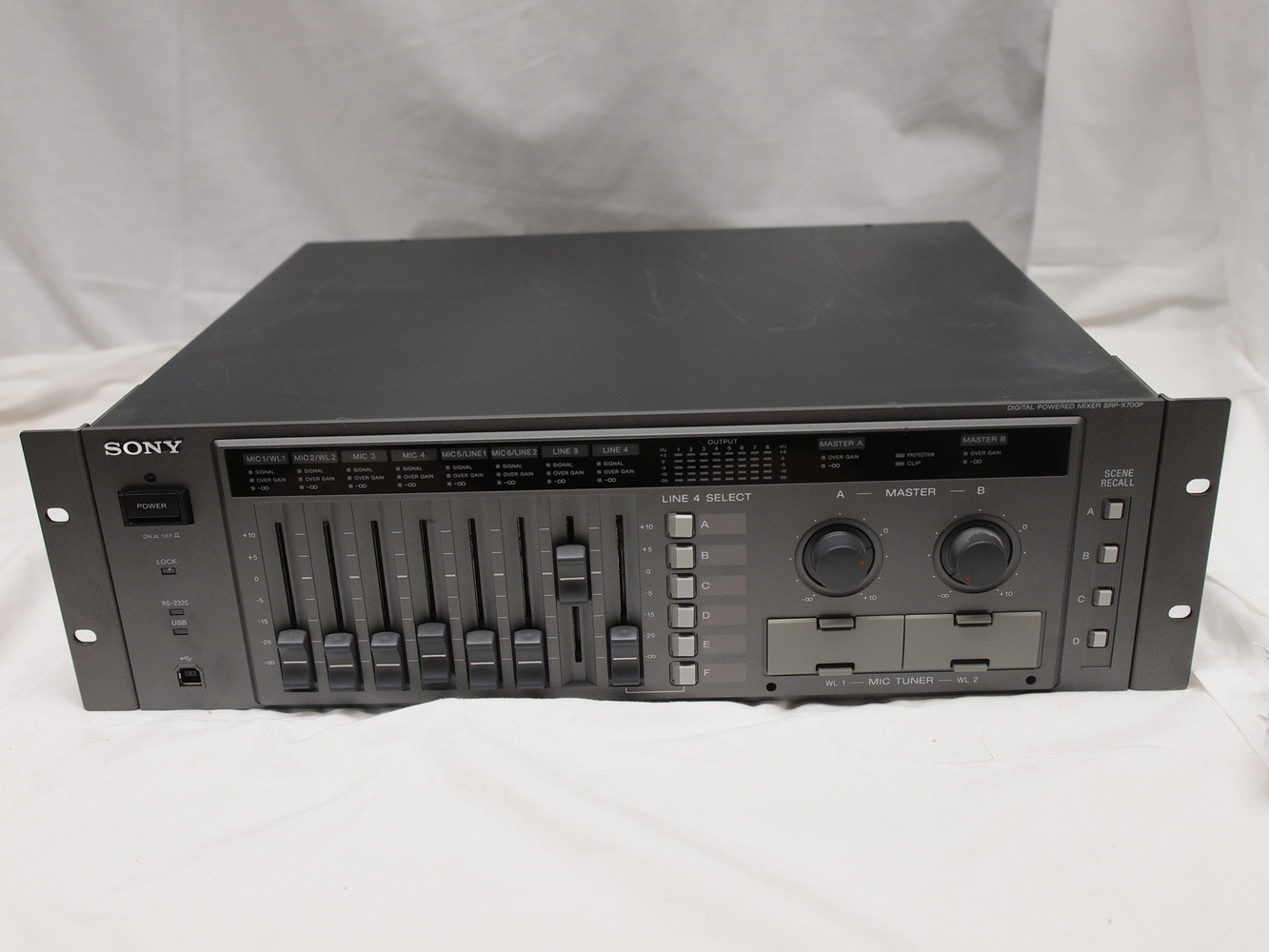

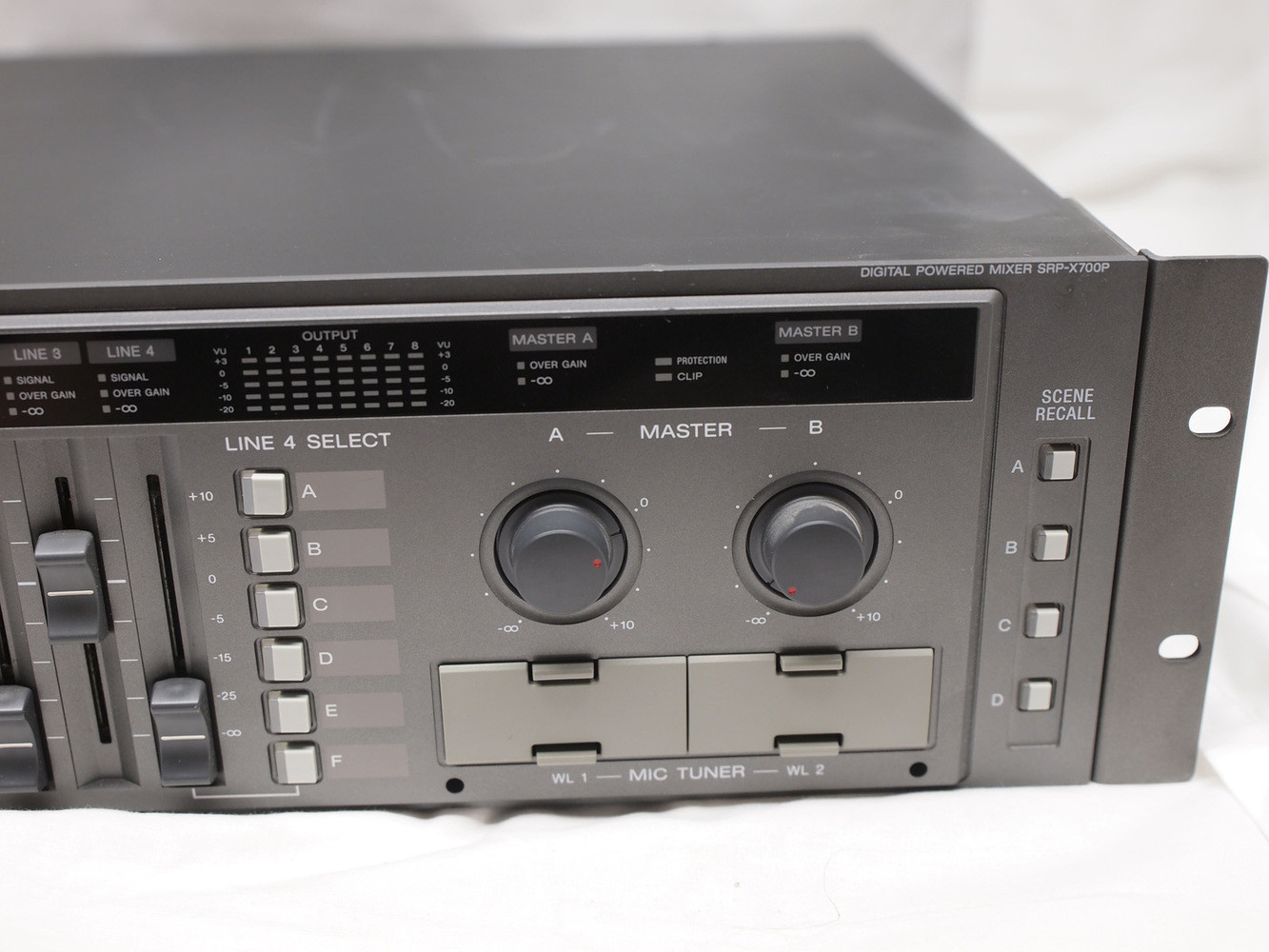

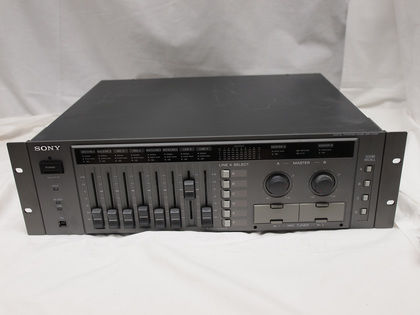

SONY SRP-X700P Förstärkare 2x150W m. Mixerfunktion

SONY SRP-X700P förstärkare 2x150W vid 8 Ohm.
Med misxerfunktion, datastyrning m.m.
Originallåda medföljer.

Beskrivning på Engelska:
ELECTRICAL CHARACTERISTICS
Composite Video/S Video
Colour system NTSC/PAL/SECAM
Frequency response 50 Hz - 10 MHz
Level 1 Vp-p (75 ? )
Component Video
Colour system NTSC/PAL/SECAM
Frequency response 50 Hz - 150 MHz
Level Y 1 Vp-p (75 ? )
R-Y 0.7 Vp-p (75 ? )
B-Y 0.7 Vp-p (75 ? )

RGB
Frequency response 50 Hz - 150 MHz
Resolution 1280 x 1024 pixels, 60 Hz (SXGA)
Level G 0.7 Vp-p (75 ? )
B 0.7 Vp-p (75 ? )
R 0.7 Vp-p (75 ? )
SYNC/HD, VD 1-5 V (47 k? ) sync positive/negative

Audio (analogue)
Frequency response Line in - Line out 20 Hz - 20 kHz
T.H.D Line in - Line out Less than 0.01 % (1 kHz)
S/N ratio Line in - Line out More than 104 dB (IHF A)
Crosstalk Line in - Line out Less than -90 dB (1 kHz)
Others
ANTENNA IN a-b BNC x 2, DC 9 V OUT
Microphone power supply DC 48 V, MIC1-6 Inputs

GENERAL
Power requirement 120/220/230 V AC, 50/60 Hz
Power Consumption 150 W
Operating temperature 0°C to +40°C (+32°F to +104°F)
Storage temperature -20°C to +60°C (-4°F to +140°F)
Dimensions 482 (W) x 132 (H) x 350 (D) mm, 3U
(19 x 5 1 /4 x 13 7 /8 inches)
Mass Approx. 13 kg (28 lb 11 oz)
Supplied Accessories AC Power cord (1), Operating manual (1),
IR Transmitter (1), Foot (4),
Control software disk (1)
* Requires Microsoft Windows
98SE/ME/ 2000/XP
Optional Accessories WRU-806 UHF Synthesized Tuner Unit
AN-820A UHF Antenna

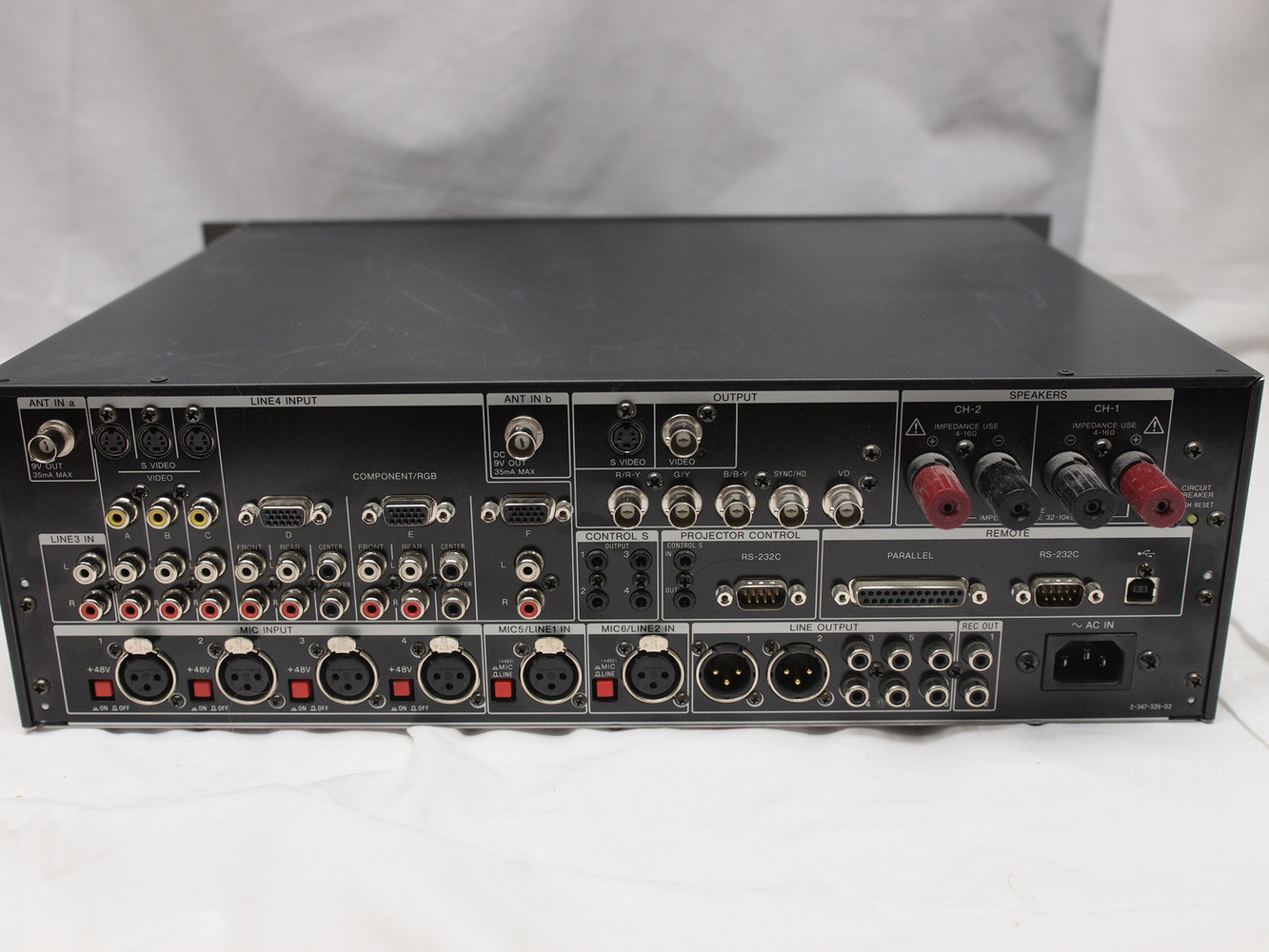

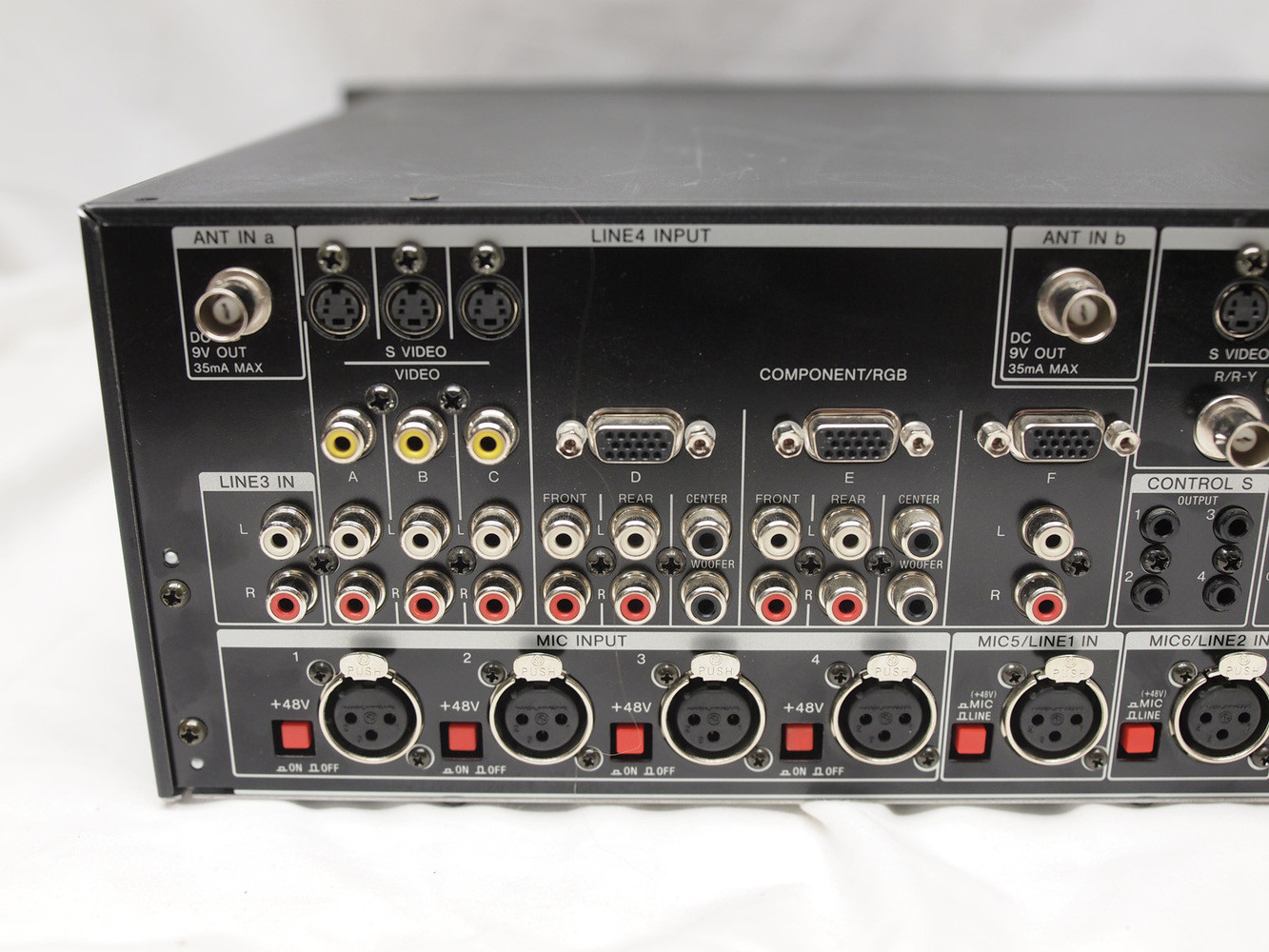

AUDIO INPUTS/OUTPUTS
Input ConnectorCircuit Channel Reference/Peak Level Impedance
MIC/WL 1, 2 XLR-3-31type Balanced Mono -60 to -45 dBu/-37 to -22 dBu more than 2.2 k?
MIC 3, 4 XLR-3-31type Balanced Mono -60 to -45 dBu/-37 to -22 dBu more than 2.2 k?
MIC 5, 6 XLR-3-31type Balanced Mono -60 to -45 dBu/-37 to -22 dBu more than 2.2 k?
(LINE 1, 2) -10 to +4 dBu/-+10 to +24 dBu more than 10 k?
LINE 3 Phono x 2 Unbalanced Stereo -10 to 0 dBu/+10 dBu to +20 dBu more than 10 k?
LINE 4 Phono x 2 Unbalanced Stereo -10 to 0 dBu/+10 dBu to +20 dBu more than 10 k?
(A, B, C, F)
LINE 4 (D, E) Phono x 6 Unbalanced Stereo/Surround -10 to 0 dBu/+10 dBu to +20 dBu more than 10 k?
Output ConnectorCircuit Channel Reference/Peak Level Load impedance
LINE 1, 2 XLR-3-32type Balanced Mono +4 dBu/+24 dBu more than 600 ?
LINE Phono x 1 Unbalanced Mono -5 dBu/+15 dBu more than 10 k?
3, 4, 5, 6, 7, 8
REC 1, 2 Phono x 1 Unbalanced Mono -5 dBu/+15 dBu more than 10 k?

VIDEO/RGB INPUTS/OUTPUTS
Input ConnectorSignal Type
LINE 4 (A, B, C) Phono x 1 Composite
4-pin Mini Din S Video
LINE 4 (D, E, F) D-sub 15-pin Component/RGB
Output ConnectorSignal Type
R/R-Y G/Y B/B-Y SYNC/HD VD BNC x 5 Component/RGB
S VIDEO 4-pin Mini Din S Video
VIDEO BNC x 1 Composite
* Can switch inputs of Sony applicable Projectors automatically by using RS-232C control function when the
switcher of SRP-X700P is operated.

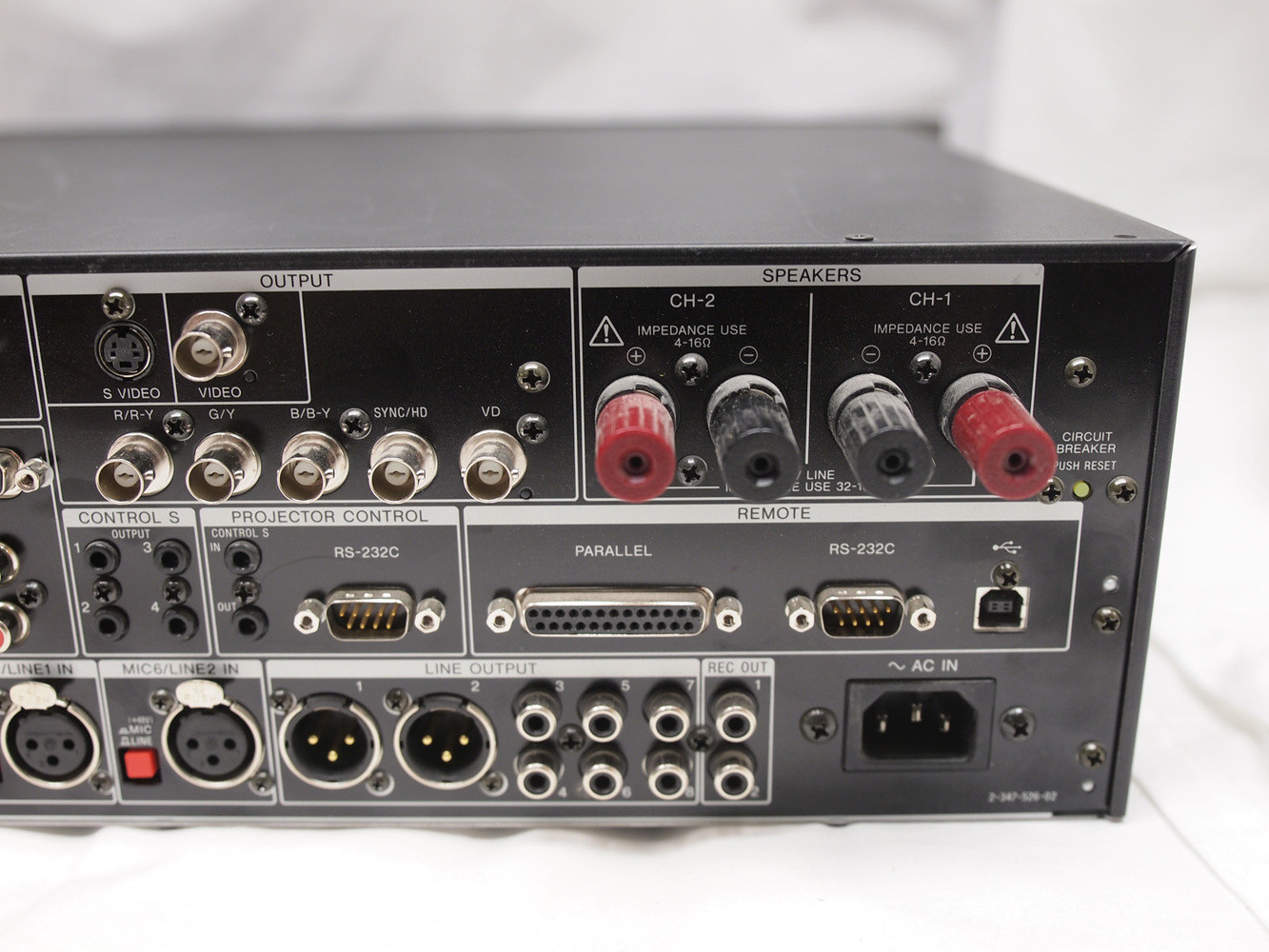

SPEAKER OUTPUTS
Output ConnectorImpedance Rated Power
CH1 4 ? -16 ? 150 W (8 ? ) 200 W (4 ? )
CH2 4 ? -16 ? 150 W (8 ? ) 200 W (4 ? )
70V LINE 32 ? -10 k? Max 150 W

REMOTE CONTROL TERMINAL
RS-232C ports Connector Function
PROJECTOR CONTROL D-sub 9-pin x 1, male, Input Selection, Power On/Standby
(RS-232C) inch standard (applicable Projectors/PDP:
Sony VPL-FX50, VPL-PX21/31/32, PFM-42B1)*1
*
2
RS-232C D-sub 9-pin x 1, male, Fully controlled Audio and Switch functions
inch standard
USB ports Connector Function
USB (Front/Rear) Series B connector x2 Fully controlled Audio and Switch functions
Parallel I/O ports Connector Function Type
PARALLEL IN (12-pin) AV Selection(LINE 4), Power On/Off, Make-Contact
Scene Recall, Volume, Volume Up/Down, CMOS level, active low
D-sub 25-pin x 1, Muting, Remote control of connected
female, milli standard products with Control-S
PARALLEL OUT (10-pin) Output status of Pallalel Input Function Open collector
(expect for status of Controlled products
with Control-S)
Control-S ports Connector Function
OUTPUT 1-4 Mini Jack x 4 Play, Stop, Pause, FF, REC, PREV, NEXT
(applicable AV Products: Sony VHS/8mmVTR/Betamax
VTR/DV/CD/CDR/MD equiped with Control-S terminal,
DVD by using supplied IR Transmitter)
PROJECTOR IN Mini Jack x 1 For the connection of Projector remote commander
PROJECTOR OUT Mini Jack x 1 Input Selection, Power On/Standby
(applicable Projectors: Sony?s VPL-PX15/10, PS10, CX11/10)*1
*
2
