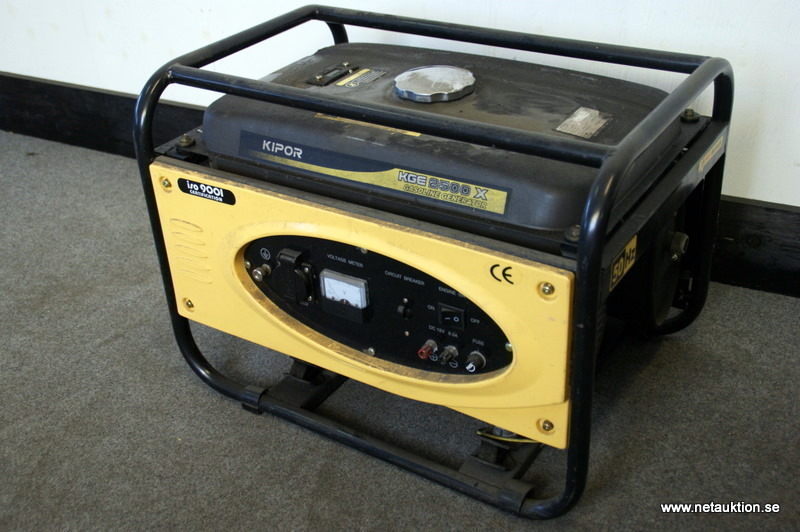

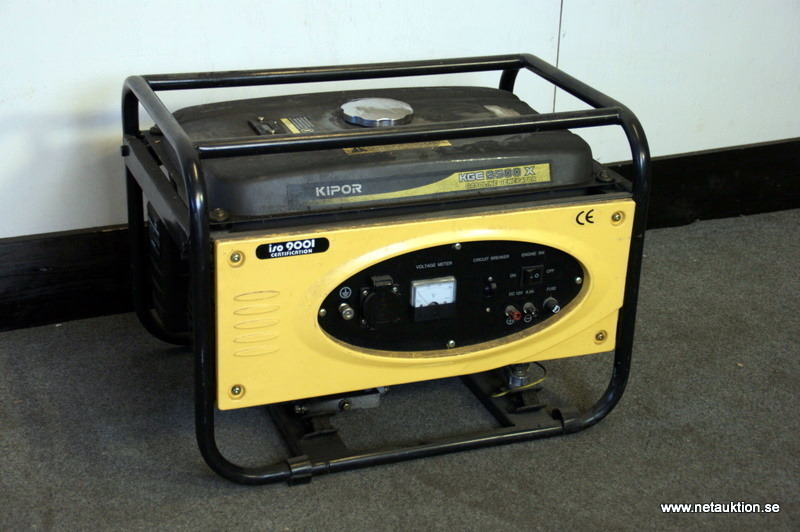

Begagnat elverk med nedan kapacitet

2,2 KvA
Rated frequency (Hz) 50 60
Rated output(kVA) 2 2.2
Max. ouput (kVA) 2.2 2.4
Rated voltage (V) 115/230 120/240
Rated current (A) 17.4/8.7 18.3/9.2
Rated speed (r/min ) 3000 3600
Phase NO. Single phase
Power factor £¨cos¦Õ£© 1.0
Insulation grade B
Pole number 2
Excitation mode Self-Excitation and constant voltage(AVR)
panel type General panel
Output Volage (V) 115/230 120/240
Receptacle Two receptacles
Connection pole Without
DC12V output Connection pole output
Overall dimension:L¡ÁW¡ÁH(mm) 590¡Á430¡Á430
Dry weight (Kg) 43
Working assorting weight(Kg) 60
Noise Level(7M) db(A) 66
Structure type Open frame
Engine Model KG200
Engine type Single-cyinder,four-stroke,OHV,air-cooled
Cylinder NO,-bore¡Ástroke(mm) 1-68¡Á54
Displacement 196
Rated power[kW(Hp)/(r/min)] 3.6/3000 4.0/3600
Compression ratio 8.5:1
Rated rotation speed 3000 3600
lgnition system T.C.I
Cooling system Air cooled
Lubrication system Splashed
Starting system Recoil Starter
Fuel type Automotive unleaded gasoline
Lube oil Brand CDgrade or SAE10W-30,15W-40
Capacity of cooling Water(L) Without
Lube capacity (L) 0.6
Starting motor capacity (V-kW) Without
Charging generator capacity (V-A) Without
Battery capacity(V-Ah) Without
Fuel consumption (g/kW¡¤h) ¡Ü395
Fuel tank capacity (L) 28
Continuous running time (hr) 21.5
